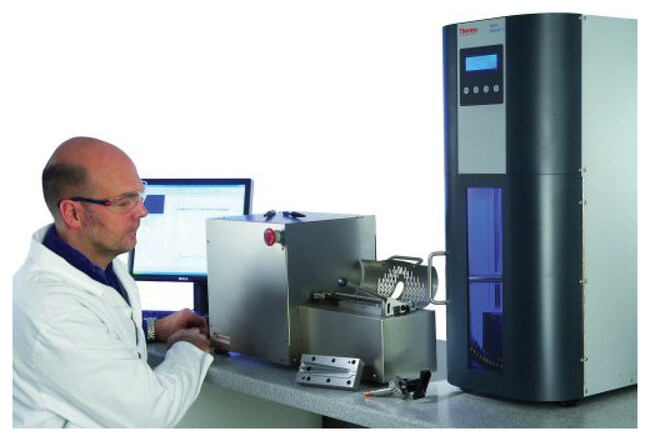

HAAKE MiniCTW Micro-Conical Twin Screw Compounder for industrial research and development needs a sample amount of 5g or 7cm3 only. Nobody can afford to waste expensive raw materials when developing new products. In addition, it helps to shorten time-to-market and cut development costs to gain a distinct competitive advantage. Therefore, quick and early assessments of a new material are key. The micro-conical twin screw compounder Thermo Scientific HAAKE MiniCTW allows extrudating as little as five grams of material and thereby helps to accelerate the conception of the final product.
When compounding expensive or small scale materials such as nano-composites or engineered polymers, you need a fast, dependable, cost efficient method to obtain tangible results.
Priced right, the HAAKE Mini CTW Micro-Conical Twin Screw Compounder is the answer: The HAAKE MiniCTW requires as little as five grams or seven milliliters (ml) of material for compounding, which is especially beneficial for industries that compound expensive or small-scale materials such as nano-composites, bio-polymers or pharmaceuticals. By using the optional force feeder, customers can continuously extrude very small material volumes. The instrument is based on proven, conical twin screw technology with co- and counter-rotating screws, and it works as a standalone unit with data export. Due to the channel and a backflow bypass valve, the residence time can be exactly defined.
The HAAKE MiniCTW Micro-Conical Twin Screw Compounder is ideal for the precisely controlled reactive extrusion of high-viscous melts that is being done via an MS-Windows™based software that offers several test set-ups. By running the instrument in circulation mode, the required reaction time for the reactive mixture can be controlled easily. At the end of the test, the bypass valve can be opened and the sample is extruded as a strand. By measuring the torque of the drive motor, the reaction process can be monitored effectively. Test results are stored in the software. The HAAKE MiniCTW Micro-Conical Twin Screw Compounder is one model within our suite of micro-conical twin screw compounders that serves a variety of markets, including polymer, bioscience, nanotechnology and pharmaceutical. The instrument differs from the well-established Thermo Scientific HAAKE MiniLab micro-compounder in that it is designed specifically for industrial research and development whereas the HAAKE MiniLab is focused on polymer development applications. To complete our comprehensive solutions, our international team of material characterization experts provides proven answers for small sample compounding.
Recommended for:
This miniaturized, high-tech tool is perfect for in industrial research in material science in the following markets:
- Automotive
- Aerospace
- Electronics
- Polymer Processing
- Polymer Screening
- Colorants
- Specialty inks / Toners
- Building and Construction
- Consumer Products
- Pulp and Paper
Compounding and extrusion instrument selection guide
| | Barrel diameter (mm) | Barrel
length
L/D | Da/Di | Achievable output (kg/h)* | Temp. (°C) | Screw design | Max. screw speed (rpm) | Temp. zones ** | Drive power (kW) |
| HAAKE MiniCTW | Conical | | | 0.01–0.1 | 300 | Conical co- and counter rotating | 360 | 2*** | 0.4 |
| Pharma mini HME | Conical | | | 0.01–0.1 | 280 | Conical co- and counter rotating | 360 | 2*** | 0.4 |
| MiniLab 3 | Conical | | | 0.01–0.1 | 350 (420) | Conical co- and counter rotating | 360 | 2*** | 0.4 |
| Laboratory scale |
| Pharma 11 | 11 | 40 | 1.72 | 0.02–2.5 | 280 | Parallel co-rotating | 1000 | 8 | 1.5 |
| Process 11 | 11 | 40 | 1.72 | 0.02–2.5 | 350 (450) | Parallel co-rotating | 1000 | 8 | 1.5 |
| Process 16 | 16 | 40 | 1.73 | 0.4–20 | 350 (450) | Parallel co-rotating | 1000 | 8 | 3.7 |
| Rheomex PTW 16 OS | 16 | 25 (40) | 1.73 | 0.2–10 | 400 (450) | Parallel co-rotating | 1100 | 7 (10) | 7 (16)**** |
| Rheomex PTW 24 OS | 24 | 28 (40) | 1.77 | 0.5–50 | 400 (450) | Parallel co-rotating | 1100 (560) | 7 (10) | 16 (7)**** |
| Rheomex CTW 100 OS | Conical | | | 0.2–5 | 450 | Conical counter rotating | 250 | 3 | 7 (16)**** |
| Pilot processing and production |
| TSE 24 MC | 24 | 28 (40) | 1.77 | 0.5–50 | 400 (450) | Parallel co-rotating | 500 (1000) | 7 (10) | 5.5(11) |
| Pharma 16 | 16 | 40 | 1.73 | 0.2–5 | 300 | Parallel co-rotating | 1000 | 8 | 2.5 |
| Pharma 24 | 24 | 40 | 1.77 | 0.5–20 | 300 | Parallel co-rotating | 1000 | 8 | 11 |
L/D = Ratio of flighted screw length to outer diameter
PC = External computer control
TS = Integrated touchscreen control
* = Material dependent
** = Barrel length dependent
*** = Common set point
****= Driven by PolyLab drive unit
( ) = Optional
For Research Use Only. Not for use in diagnostic procedures.
