HAAKE™ Rheomex CTW 100 OS Twin-Screw Extruder for the HAAKE™ PolyLab™ OS System : McARIS

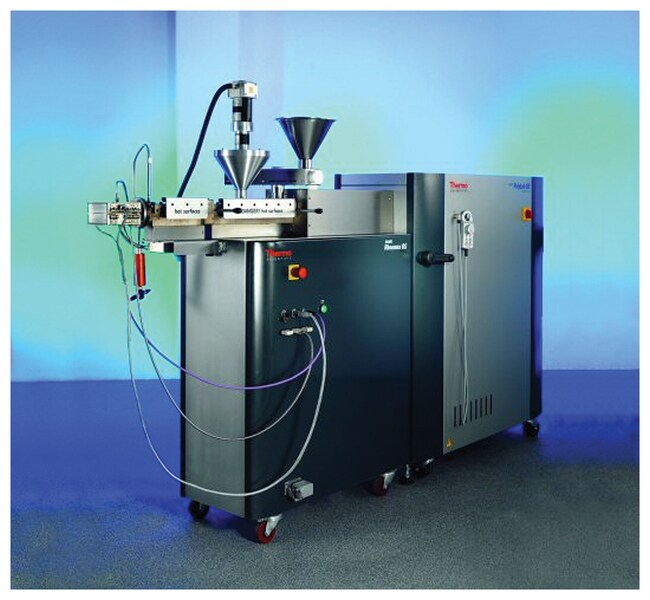

HAAKE™ Rheomex CTW 100 OS Twin-Screw Extruder for the HAAKE™ PolyLab™ OS System torque rheometer.

With a small sample amount customers can simulate production processes and produce films and profiles for further studies.

Compounding and extrusion instrument selection guide

	Barrel diameter (mm)	Barrel length L/D	Da/Di	Achievable output (kg/h)*	Temp. (°C)	Screw design	Max. screw speed (rpm)	Temp. zones **	Drive power (kW)
HAAKE MiniCTW	Conical			0.01–0.1	300	Conical co- and counter rotating	360	2***	0.4
Pharma mini HME	Conical			0.01–0.1	280	Conical co- and counter rotating	360	2***	0.4
MiniLab 3	Conical			0.01–0.1	350 (420)	Conical co- and counter rotating	360	2***	0.4
Laboratory scale
Pharma 11	11	40	1.72	0.02–2.5	280	Parallel co-rotating	1000	8	1.5
Process 11	11	40	1.72	0.02–2.5	350 (450)	Parallel co-rotating	1000	8	1.5
Process 16	16	40	1.73	0.4–20	350 (450)	Parallel co-rotating	1000	8	3.7
Rheomex PTW 16 OS	16	25 (40)	1.73	0.2–10	400 (450)	Parallel co-rotating	1100	7 (10)	7 (16)****
Rheomex PTW 24 OS	24	28 (40)	1.77	0.5–50	400 (450)	Parallel co-rotating	1100 (560)	7 (10)	16 (7)****
Rheomex CTW 100 OS	Conical			0.2–5	450	Conical counter rotating	250	3	7 (16)****
Pilot processing and production
TSE 24 MC	24	28 (40)	1.77	0.5–50	400 (450)	Parallel co-rotating	500 (1000)	7 (10)	5.5(11)
Pharma 16	16	40	1.73	0.2–5	300	Parallel co-rotating	1000	8	2.5
Pharma 24	24	40	1.77	0.5–20	300	Parallel co-rotating	1000	8	11

L/D = Ratio of flighted screw length to outer diameter

PC = External computer control

TS = Integrated touchscreen control

* = Material dependent

** = Barrel length dependent

*** = Common set point

****= Driven by PolyLab drive unit

( ) = Optional

For Research Use Only. Not for use in diagnostic procedures.
