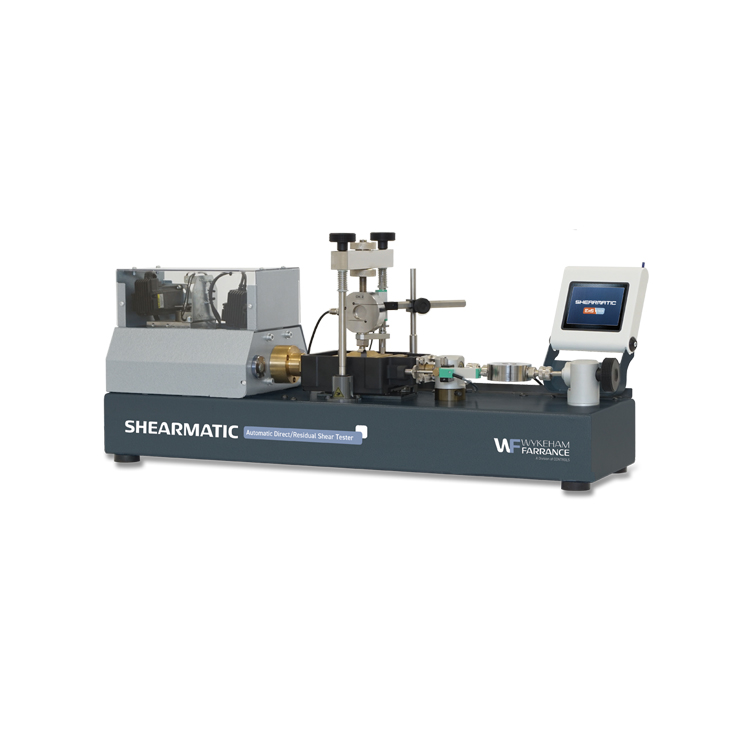

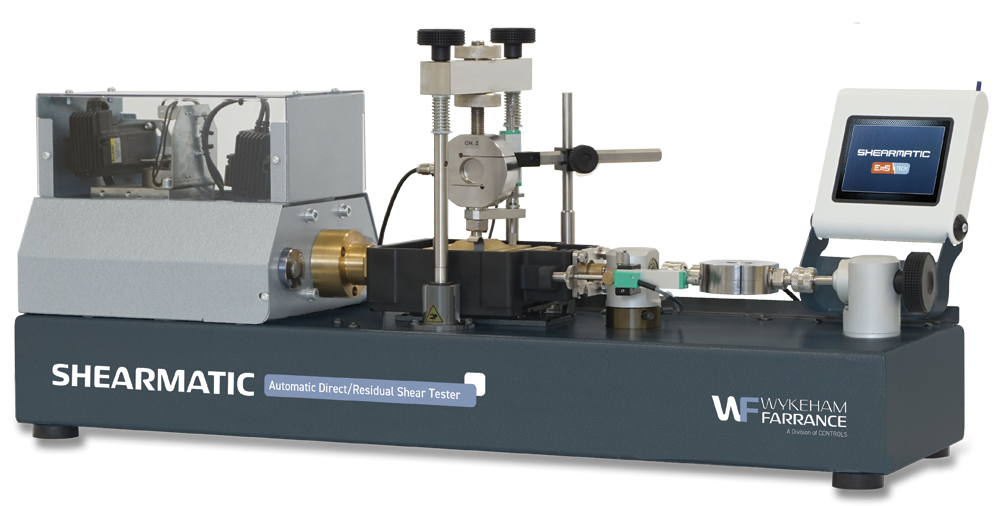

The Shearmatic EmS is the fully automatic shear testing machine that benefits from the new low maintenance, efficient and environmentally-friendly Electromechanical Servoactuation (EmS) technology. Silent, compact and high-performing, the Shearmatic EmS testing system can be run as stand-alone unit or with our ingenious software that can connect up to 6 units with just one PC, enabling you to expand your laboratory gradually and seamlessly.
Direct/Residual test description
The test determines the consolidated drained shear strength of one specimen of a soil material under direct shear boundary conditions. The specimen is deformed at a controlled rate on or near a single shear plane determined by the configuration of the apparatus.
Fully automatic
The SHEARMATIC EmS can complete the whole test in fully automatic mode from consolidation to shear stage; selecting the load (stress) for consolidation and a predefined shear speed for shearing stage offering a practical and accurate way to obtain reliable results without any need for manual intervention, reducing the risk of human error.
Complete stand-alone system
Total control of a single unit, including full test execution is achieved without the need of a PC. The user interface is based on a large 6โ touchscreen color display permitting to start, pause and stop the test, choose the data recording mode, show the readings during the test execution and carry out the transducers calibration.ย It comes supplied with a USB pen drive allwoing unlimited storage, TXT format data output.
Clarity in results
- Test results are saved and displayed in real-time, speeding data capture.
- Results are then processed using Wykeham Farrance SOILMASTER P&R ย easy-to-use Geo-Analysis templates, written by experts around international standards allowing you to concentrate on analyzing your materials; not on programing your testing machine.
Interchangeable shear boxes
- Standard WF shear boxes from 50 to 100mm diameter or from 60 to 100 mm square.
Totally new and ingenious software (optional)
- Allows the remote control, from a single PC, of multiple Shearmatic Ems machines. When the Remote control mode is used, the PC software becomes the user interface and manages the main functions as well as the channels calibration by linear, polynomial and multi-coefficient curves.
- Can pilot up to 6 Shearmatic EmS units from one single PC with user able to select single or multiple unit batches.
- Once the software is installed and linked to the first SHEARMATIC EmS, it is easy to add more units by enabling the associated LAN communication (IP address) without complications or costs.
- Calibrations of displacement transducers and load cells are stored as txt file and easy to recall, up to 10 calibration points can be recorded for each channel.
- Fully automatic,ย standalone Direct / Residual Shear soil testing system managed by local user interface with 6โ touch screen high resolution color display that can also accurately performย Consolidation tests using appropriate consolidation cells.
- High-performingย with maximum vertical and horizontal force of up to 10 kN, infinite variable speed from 0.00001 to 15.00000 mm/min and adjustable number of cycles from 1 to 50
- Save time and ensure test accuracyย with straight horizontal transmission of force facilitated by high stiffness load chain shear box, driving head and load cell, eliminating horizontal load measurement inaccuracies.
- Fast, smooth and accurate loading delivered by integrated optimized PID closed-loopย control with precise load ensured by a load cell directly mounted on the loading tip.
- Totally flexibleโ choose to control unit either via the Integrated local user interface or via PC
- Modular and expandable with optional dedicated softwareย โ gradually connects up to six units via LAN port using the same PC software allowing you to build your laboratory without interruption โ resulting in excellent return on investments.
- Environmentally friendly and quietย โ new Electromechanical Servoactuation (EmS) technology requiring no dead weights or large and noisy air compressors, thus drastically reducing noise levels.
- Long-life and low maintenanceย with corrosion-free, techno-polymeric shear box carriage. Lightweight and easy to clean, the top-quality techno-polymeric material offers excellent resistance to corrosion.
- Maximum vertical force:ย 10 kN
- Maximum horizontal force:ย 10 kN
- Max horizontal travel: 23 mm โ displacement trasducer:ย 25 mm
- Max Vertical travel: 12.8 mm โ displacement trasducer:ย 10 mm
- Test speed:ย from 0.00001 to 15.00000 mm/min
- Maximum number of consolidation steps:ย 99
- Maximum number of shear cycles:ย 50
- Weight:ย 60 kg. approx
- Sample type and size:ย up to 100 mm square or round
- Dimensions [l x h x d]:ย 990 x 550 x 350 mm approx
- Multivoltage โ Multifrequency power supply:ย 115-230 V, 50-60 Hz, 1Ph
- Power consumption: 200 W
