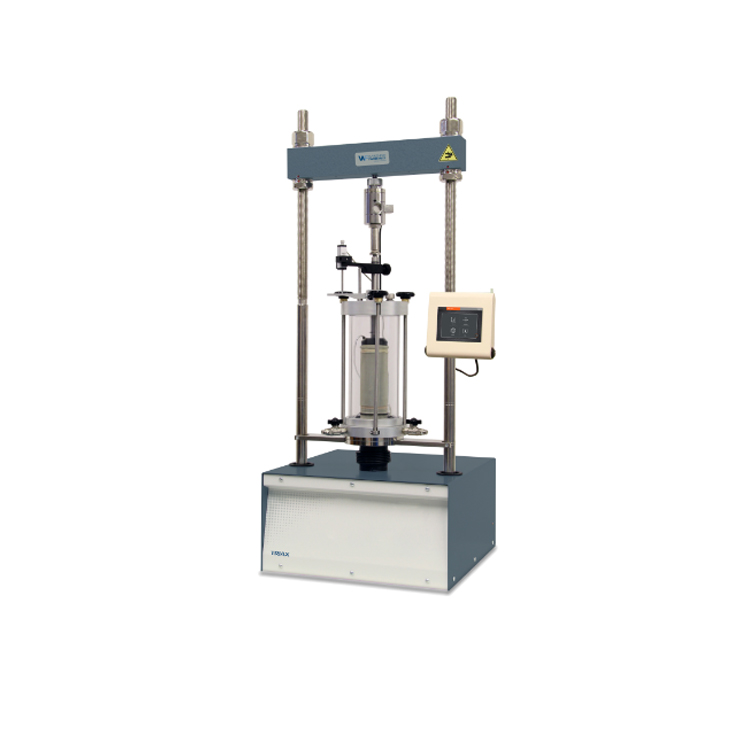

Triaxial Load Frame TRIAX with 4 Built-In Channels is a basic triaxial load frame with built-in data acquisition used to perform triaxial tests on samples up to 70 mm dia.
WYKEHAM FARRANCE’s electro-mechanical TRIAX 4C is the ideal solution for commercial laboratories who require a versatile standalone machine, able to perform high quality triaxial tests in addition to unconfined and general purpose compression tests with superior perfomance.
The load frame is built around a robust twin chromed-column structure, ensuring extremely high rigidity.
This model is fitted with 4 built-in channels and data acquisition, to be used either in standalone mode or connected to a PC.
This load frame is equipped with a wide user friendly touch screen display, side mounted and very ergonomic, allowing local control of the main functions and data acquisition.
The touch screen display is extremely versatile to start, pause and stop the test, to set up data recording mode, to show live readings of the transducers in real time and to perform calibrations. In addition, a LAN connection and a dedicated software (included with the machine) allows remote control from the PC. In remote control mode the software allows the user to control the main functions via PC, as well as to calibrate the channels with linear, polynomial and multi-coefficient calibration mode, and to display the readings.
| Model | 28-WF4001/4C |
| 4 channels built-in | YES |
| Maximum sample diameter, mm | 70 |
| Minimum testing speed, mm/min | 0.00001 |
| Maximum testing speed, mm/min | 50.8 |
| Maximum load frame capacity, kN | 50 |
| Maximum loading capacity, kN | from 35 to 7 |
| Minimum vertical clearance, mm | 390 |
| Maximum vertical clearance, mm | 725 |
| Horizontal clearance, mm | 380 |
| Platen diameter, mm | 158 |
| Platen travel, mm | 100 |
| Dimensions, mm ( h x w x d) (approx.) | 1215 x 645x 495 |
| Power, W | 600 |
| Weight, kg (approx.) | 90 |
Triaxial Load Frame TRIAX with 4 Built-In Channels is a basic triaxial load frame with built-in data acquisition used to perform triaxial tests on samples up to 70 mm dia.
WYKEHAM FARRANCE’s electro-mechanical TRIAX 4C is the ideal solution for commercial laboratories who require a versatile standalone machine, able to perform high quality triaxial tests in addition to unconfined and general purpose compression tests with superior perfomance.
The load frame is built around a robust twin chromed-column structure, ensuring extremely high rigidity.
This model is fitted with 4 built-in channels and data acquisition, to be used either in standalone mode or connected to a PC.
This load frame is equipped with a wide user friendly touch screen display, side mounted and very ergonomic, allowing local control of the main functions and data acquisition.
The touch screen display is extremely versatile to start, pause and stop the test, to set up data recording mode, to show live readings of the transducers in real time and to perform calibrations. In addition, a LAN connection and a dedicated software (included with the machine) allows remote control from the PC. In remote control mode the software allows the user to control the main functions via PC, as well as to calibrate the channels with linear, polynomial and multi-coefficient calibration mode, and to display the readings.
Maximum testing load depending on the selected test speed (variable from 35 to 7 kN). The choice of the opportune load cell capacity shall take into account this value.
