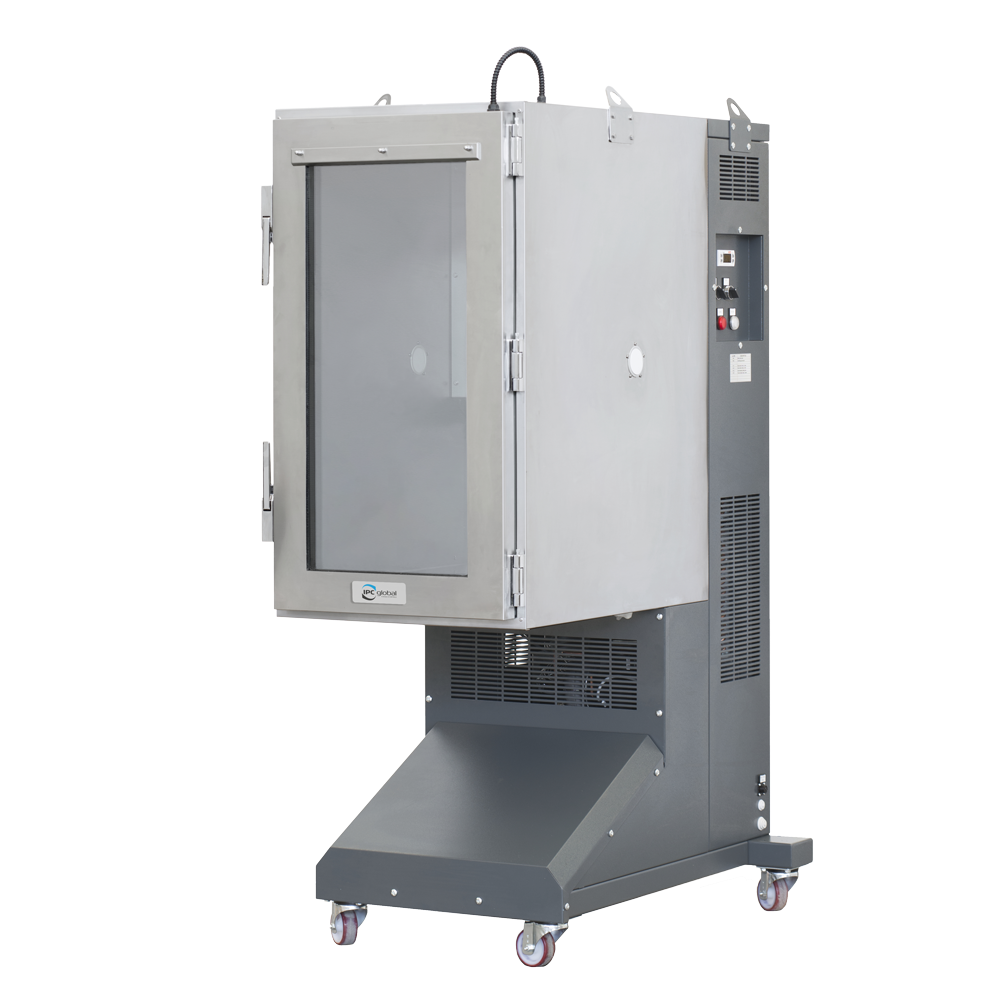

IPC Global’s environmental chambers use a high-quality mechanical refrigeration system and superior insulation technologies to enable users to analyze materials’ properties at real-life working temperatures (up to -50 to 80/100° C) for extended periods without the need for liquid nitrogen LN2.
High accuracy and total control over temperature ramps and dwells are achieved using the Programmable Digital Controller enabling users to easily perform complex test e.g. Thermal Stress Restrained Specimen Test (TSRST).
The Environmental chamber can be used as part of your SuperPave performance based testing program.
- Closed-loop PID temperature controller
- Four access port (models for UTM-130), two access ports (model for UTM-30)
- Stainless steel AISI 304, 18/10 heavy duty construction
- Triple glazed, argon filled, Lo glass door
- Defrost system and interior lightning
- Fan forced ventilation
- Ergonomic design provides easy access to chamber
Additional features for extended range models only:
- Programmable digital controller – PID tuning, temperature ramps and dwells, auto-tuning, selectable sample time
- Extended range maximum cooling rate > -50°C/hour (dependent on thermal mass within chamber)
- Extended range programmable gradient of -20°C/hour with ramp control
- Fully adjustable temperature probe for greater accuracy
Environmental chambers for UTM-130
Models | 79-PV70E32
Extended range | 79-PV70E42 | 79-PV70E52
Extended range |
| Compatible UTMs | UTM-130
79-PV70C05/I2
79-PV70C06/I2 | UTM-130
79-PV70C05/I2
79-PV70C06/I2 | UTM-130XL
79-PV70C15/I2
79-PV70C16/I2 |
| Temperature range | -50 to+100°C | -25 to +70°C | -40 to +100°C |
| Temperature gradient | -20°C/hour with ramp control | – | -20°C/hour with ramp control |
| Mounted on wheels | Yes | Yes | Yes |
| Power rating W | 4000 | 4000 | 4000 |
| Dimensions (w x d x h) mm | 580 x 1150 x 1750 | 580 x 1150 x 1750 | 960 x 1700 x 1800 |
| Weight (approx.) kg | 250 | 210 | 300 |
Environmental chambers for UTM-30
| Models | 79-PV70E12 | 79-PV70E22
Extended range |
| Compatible UTMs | UTM-30
79-PV70B12/I2
79-PV70B02/I2 | UTM-30
79-PV70B12/I2
79-PV70B02/I2 |
| Temperature range | -25 to +70°C | -50 to +80°C |
| Temperature gradient | – | -20°C/hour with ramp control |
| Mounted on wheels | No | No |
| Power rating W | 1700 | 5000 |
Dimensions (w x d x h)
mm | 920 X 905 X 1800 | 920 X 835 X 1850 |
| Weight (approx.) kg | 220 | 350 |
Environmental chambers for UTM-16P
| Model | 79-PV70E02 |
| Compatible UTMs | UTM-16P
79-PV70A02/I2
79-PV70A12/I2
79-PV70A14/I2 |
| Temperature range | -25 to +60° C |
| Temperature gradient | – |
| Mounted on wheels | No |
| Power rating W | 1800 |
Dimensions (w x d x h)
mm | 710 x 805 x 2985 |
| Weight (approx.) kg | 170 |
