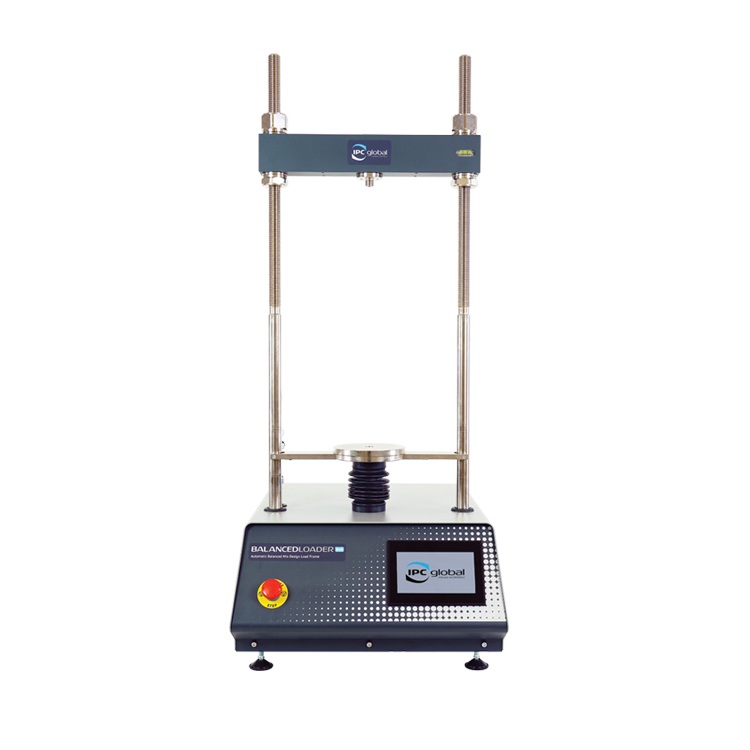

BALANCED LOADER is a new addition in the range of Controls / IPC Global universal automatic testers. The machine is designed to automatically perform most of the tests included into Balanced Mix Design procedures, including IDEAL-CT, IDEAL-RT, Indirect Tensile Strength, Semi-Circular Bend test and many more.
- This model features a wide two-column frame which is fitted with an upper crossbeam that can be set at various heights depending on the accessories to be used.
- The 50kN capacity jack is driven by a brushless motor, housed in an ergonomic cabinet. Closed-loop control ensures reliable test execution both with displacement and load applications.
- No external transducer is required for displacement measurement. Sample failure is detected automatically and stops the test. Alternatively this feature can be disabled and a travel or time limit can be set instead.
- This model is equipped with adjustable limit switches, mounted on one column.
- The interface is granted by a 7” capacitive color touchscreen display allowing the setting of speed/load and travel/load limits, data format download and graph settings, and saving of multiple pre-set test procedures. Real-time test graph and transducer data are displayed on the touchscreen.
- Test data can be stored on 16GB internal memory, transferred to a USB pen drive or downloaded through LAN or RS232 communication port.
- All accessories have to be ordered separately.
BALANCED LOADER can perform following tests:
| Marshall | ASTM D6925 / AASHTO T245 |
| EN 12697-34 |
| Splitting Tensile/TSR | ASTM D6931 / AASHTO T283 |
| EN 12697-23 |
| Indirect Tensile – Italian method 3/4 displ. | CNR 134 |
| Semi-Circular Bend SCB | IFIT – AASHTO T393/TP124 |
| Luisiana – ASTM D8044 |
| EN 12697-44 |
| IDEAL-CT | ASTM D8225 |
| IDEAL-RT | ASTM D8360 |
| Direct Shear | ISS – AASHTO TP114 |
| Leutner – EN 12697-48 |
| CBR | ASTM D1883 / AASHTO T193 |
| EN 13286-47 |
| Unconfined compression | EN ISO 17892-7 |
- Stand-alone automatic 50kN digital load frame
- Universal machine suitable for a wide range of tests, including BMD tests
- Closed-loop speed/load control
- Automatic failure detection
- Integrated transducer calibration facility
- Infinitely variable speed from 0.01 to 65 mm/min and load rate from 1 to 9999 N/s
- 7” touchscreen capacitive color display for viewing real-time graph and test data
- Fully automatic test control facility
- Adjustable travel limit devices
- Remote control from PC by using optional software
- CE emergency stop button
- Data download: Ethernet port, RS232 port or USB pendrive
Memory: 16GB internal memory
Number of channels: 7 (N°1 for actuator displacement, N° 2 for load, N°4 for displacement)
Channel resolution: 24 bit
Sampling frequency: up to 100Hz
Test speed: from 0.01 to 65 mm/min
Type of control: displacement or load
Load rate: from 1 to 9999 N/s
Max ram travel: 100 mm
Max vertical span: 800 mm
Max horizontal span: 380 mm
Overall dimensions (W x D x H): 545 x 670 x 1300 mm
Power: 400 W
Weight approx: 110 kg
